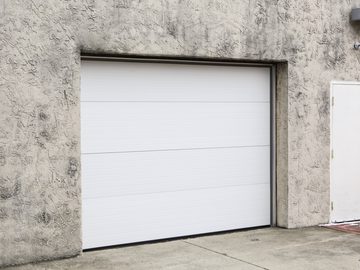

Thermospan® 200 Sectional Steel Door
Designed for optimal energy efficiency and virtually maintenance free, Wayne Dalton’s Thermospan® 200 Sectional Steel Door offers superior value. The most rigid doors available, these sectional doors are ideal for busy commercial operations.
Product Specs
Construction
- Continuous foamed-in-place polyurethane insulation and a non-conductive thermal break between the inner and outer skins with an R-value of 17.50 and a U-Factor of 0.12
- Outer skin of hot-dipped galvanized, structural quality steel is factory finished with a corrosion-resistant primer and a white polyester finish coat
- Features two patented 1 3/4″ integral roll-formed struts per section
Features
- Patented, roll-formed integral struts make them the most rigid doors available
- Innovative thermal break prevents condensation and frost
- Flexible vinyl bulb seal and non-corrosive polymer retainer prevent water and air filtration
- Heavy-duty, hot-dipped galvanized hardware contributes to long service life
Options
- This commercial door model is available with the TruChoice™ Color System
- Embossed stucco with pinstripes available in white, brown, and tan
Brochure
Highlights
| Material | Steel | |||||||||||||||
|
R-Value ? R-value measures how well a material resists heat flow: the higher the R-value, the better the insulation. For doors, a higher R-value helps improve energy efficiency by keeping indoor temperatures more stable. R0-R6 = 1 star | 17.5 (★★★★) | |||||||||||||||
|
U-Factor ? U-Factor measures how well a door keeps heat from escaping. The lower the number, the better the insulation. Unlike R-Value, which only measures material resistance, U-Factor reflects the performance of the entire door system, making it a more accurate measure of energy efficiency.
| 0.12 (★★★★) |
