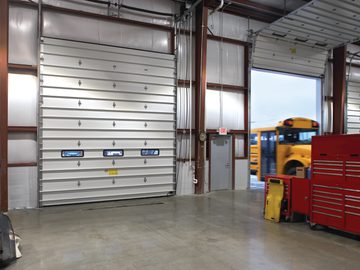

Wayne Dalton Thermospan® Model 200
Expertly constructed for thermal efficiency and superior strength, Thermospan® Model 200 is an innovative alternative to standard insulated commercial doors. A polyurethane core and non-conductive thermal breaks offer protection against condensation and frost, while a patented structural design make Thermospan® doors the most rigid doors available.
Product Specs
Construction
- Continuous foamed-in-place polyurethane insulation
- Sectional steel doors with patented roll-formed integral struts on each section
- 2” section thickness
Features
- Thermal break keeps the interior skin at room temperature preventing condensation and frost
- Inner and outer skins are hot-dipped galvanized steel and provide corrosion-resistance
- Polyurethane core provides high thermal efficiency and aids in smooth operation
- Integral struts per section increase strength and rigidity
- Joint seal prevents air infiltration and helps save energy
- 10,000 cycle standard spring
- R-Value of 17.50, U-Factor of 0.12
Options
- 20-gauge exterior steel available
- Lite options: Vision Lites or Full-View Lites
- Chain hoist operation
- Motor Operation
- Sensing edges
- Photo eyes
- High cycle spring (25k, 50k, 100k)
- 3” Track
- Solid shafts
- Perimeter weather seal
- Special track designs
- Mullions
Brochure
Highlights
| Material | Galvanized Steel | |||||||||||||||
|
R-Value ? R-value measures how well a material resists heat flow: the higher the R-value, the better the insulation. For doors, a higher R-value helps improve energy efficiency by keeping indoor temperatures more stable. R0-R6 = 1 star | 17.5 (★) | |||||||||||||||
|
U-Factor ? U-Factor measures how well a door keeps heat from escaping. The lower the number, the better the insulation. Unlike R-Value, which only measures material resistance, U-Factor reflects the performance of the entire door system, making it a more accurate measure of energy efficiency.
| 0.12 (★★★★) | |||||||||||||||
| Uses | Sectional Doors |
