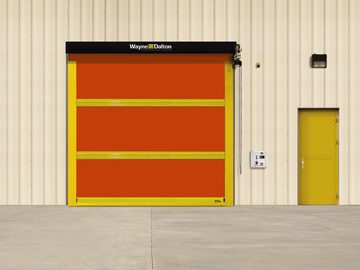

Wayne Dalton Model 884 ADV-X
As the heaviest door of the high performance door series, the Model 884 ADV-X combines durability and efficient operation. This model is ideal for exterior applications and can withstand even the harshest weather conditions.
Product Specs
Construction
- Door panel constructed from five layers of NBR rubber with four layers of polyester weave
- Obstruction detection – two sets of in-plane infrared sensors mounted 18" and 50"-54" from floor
- Standard max height 18' at 24' wide or 20' at 23' wide
- Built-in door stop device
Features
- Rugged curtain construction with strutless design increases high pressure resistance while minimizing the operational noise
- Capable of withstanding pressure of up to 7.5 PSF or 90 MPH
- Springless design requires minimal interruption for maintenance
- Direct-mounted gear drive minimizes wear and tear
- Variable frequency drive eliminates sudden jolts
- Five-year limited warranty
Options
- 197 optional RAL powder coat colors are available for guides, brackets, struts, and bottom bar
- Power availability: 230V, AC 3PH, 460V AC 3PH, 575V AC 3PH
- Multiple actuation options: push button, motion detector, radio control, key switch, pull switch, loop detector, and treadle switch
Brochures
Highlights
Material | Rubber & Polyester |
Insulation Value ? R0-R6 = 1 star | ★ |
