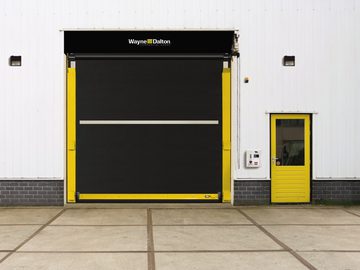

Wayne Dalton Model 885 ADV-X
The Model 885 ADV-X, Wayne Dalton's strongest and most resilient high-speed door, is constructed with reinforced rubber and provides reliable performance all year long. This model is designed to be low-maintenance and is preferred for large exterior openings and applications with extreme weather conditions such as heavy manufacturing and mining facilities.
Product Specs
Construction
- Five layers of reinforced rubber curtain construction
- Open speed of up to 50" per second
- Standard max height 30'
- Standard max width 30'
- Wind load up to 27.0 psf
- Built-in door stop device
Features
- Capable of withstanding pressure of up to 5 PSF or 75 MPH
- Springless design requires minimal interruption for maintenance
- Direct-mounted gear drive minimizes wear and tear
- Plug-and-play wiring makes it easy to install reducing the need for a licensed electrician
- Variable frequency drive eliminates sudden jolts
- Multi-reinforced rubber provides added strength without the weight
- Easy cleaning with Nitrile Butadiene Rubber (NBR) providing resistance to petrochemicals
- Five-year limited warranty
- Ideal for applications like auto and transit, parking garages, heavy manufacturing, mining, warehouse, and large openings
Options
- 197 optional RAL powder coat colors are available for guides, brackets, struts, and bottom bar
- Power availability: 230V, AC 3PH, 460V AC 3PH, 575V AC 3PH
- Multiple actuation options: push button, motion detector, radio control, key switch, pull switch, loop detector, and treadle switch
Brochures
Highlights
Material | Rubber |
Insulation Value ? R0-R6 = 1 star | ★★★★ |
