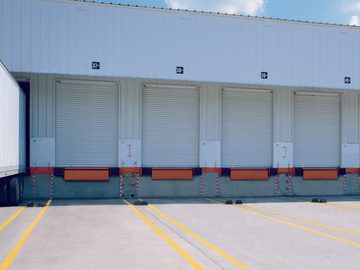

Roll-Up Sheet Door Model DS-200
Ideal for loading docks and commercial storage centers where reliable and hassle-free operation are necessary, the Wayne Dalton Roll-Up Sheet Door Model DS-200 provides excellent value. The Model DS-200 is available in round or square profiles and a variety of color options to meet the needs of your facility.
Product Specs
Construction
- Door insulation features two layers of aluminum mylar film laminated to two layers of heavy-duty polyethylene air-bubble material
- Polypropylene anti-wear strips come factory-installed as continuous guides for sliding metal parts
- Curtains are made from hot-dipped galvanized steel and finished with silicone polyester paint
- 13-gauge galvanized G section and 8-gauge galvanized wall angle
- Drum wheel is deep-drawn galvanized steel with 1-5/16″ steel bearings
Features
- Tempered steel springs engineered to counterbalance different door sizes and weights for smooth operation and durability
- Cam-action spring tensioning device allows easy adjustment of spring tension
- Corrugated top sheet assembly forms a strong torque cylinder for strength and easy operation
- Axle casting assembly holds constant door tension and allows for easy adjustments
Options
- Slide bolt or curtain lock
Brochure
Highlights
Material | Galvanized Steel |
Insulation Value ? R0-R6 = 1 star | ★ |
Uses | Sheet Door |
