PRODUCT SPECS

A quick installation process by our professional team means minimal disruption to your facility while our installer works. The Wayne Dalton Mechanical Pit Leveler’s adjustable, robust design guarantees smooth transitions between the building and the truck, while ergonomic features like an easy-release chain simplify maintenance and operation.

Convenient Operation

  • Pit height adjusters facilitate fast raising and lowering.
  • Quick-adjust positioners ensure easy alignment with the building floor.
  • No need for our installer to be under the leveler during setup, which means improved safety.
  • New levelers equipped with 4 steel fork loops for stable lifting and simple forklift placement.
  • Cutouts streamline the identification of weld points for curb angle installation.

    Robust Construction and Finish

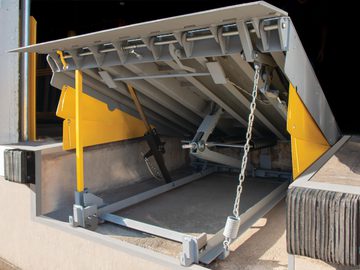

    • Open base frame ensures easy access to the rear of the pit, free from cross beams or debris traps.

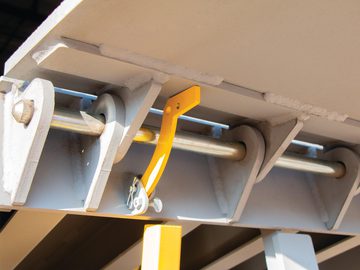

    • Durable C-channel design with heavy-duty multi-lug construction of the lip hinge.
    • Deck design eliminates the need for frequent repairs by removing the transition angle.
    • Fully supported deck hinge enhances long-term durability across the entire width.
    • Environmentally friendly powder coat finish ensures lasting protection.

    Seamless Building-to-truck Transition

    • Optimized bevelled lip design minimizes bumps and gaps, ensuring a smooth path for forklifts and reducing cargo damage.
    • Decreases shocks to workers while facilitating swift movement of material handling equipment and forklifts.

    User-friendly & Ergonomic

    • Workers easily pull deck operation release chain.
    • Simple-to-operate hold-down mechanism.
    • Well-balanced leveler allows for quick and easy articulation, automatically maintaining positive lip contact with trailer movements.

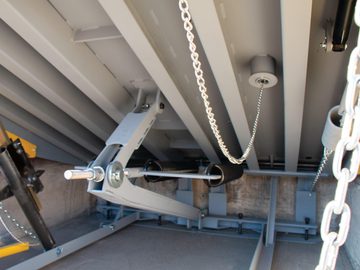

    The snubber chain and maintenance brace are positioned on the sides of the pit, providing easy access for maintenance and cleaning tasks.

    Warranty

    • One Year Limited Manufacturer Warranty included.
    • Two Year Limited Manufacturer Warranty extended when Wayne Dalton door and Mechanical Pit Leveler are purchased together.

    Brochure:

    New DaltonDock™ Mechanical Pit Leveler Expanded Line

    DaltonDock™ offers a new, expanded line of mechanical pit levelers. This new line includes the following models:

    • Model M78WD Levelers – The 7’ x 8’ model M78WD Levelers now come in 30k, 35k, 40k, and 45k capacities.
    • Model M68WD Levelers – The 6’ x 8’ model M68WD Levelers are now available in 30k, 35k, 40k, and 45k capacities.
    • New Option – You can now choose 18” and 20” Lips on both models.

    The new DaltonDock™ mechanical pit levelers offer several improvements, including:

    • New topside height adjustors that allow for quick and easy adjustment
    • Adjustable lip keepers that can easily accommodate off-spec pits
    • Lifting loops that allow for easy lifting via forklift
    • A full-width supported deck hinge to help prevent the deck from caving in near the hinge
    • A powder coat finish that is extremely durable, environmentally friendly, and retains traction even when wet

    These new pit levelers provide you with industry-leading advantages in durability, ease of use, ease of installation, and safety.

    Each leveler is perfectly balanced and is easy to operate. They use rollers and optimized geometry to make the operating chain easy for workers to pull. Each model also comes with a 24-month warranty, so you can feel at ease knowing you’re covered by Wayne Dalton if anything goes wrong. With these new levelers, you can now find a complete dock and door solution from the Wayne Dalton brand, courtesy of Creative Door Services™.
