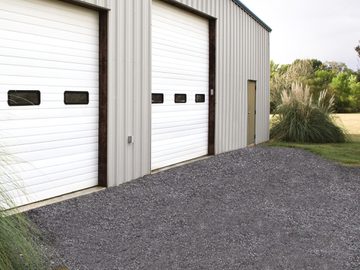

Sectional Steel Door Model C-20
Wayne Dalton's Sectional Steel Door Model C-20 is smooth, efficient, and engineered for durability, strength, and stability. The Model C-20 is available in a wide variety of sizes and configurations to best suit your needs.
Product Specs
Construction
- Featuring 20-gauge ribbed steel sections and 20-gauge center and end stiles
- Unique 2” x 3” box-stile design and tongue-and-groove construction
- Smooth white flush exterior with pinstripes
- Shiplap joint profile
Features
- To ensure a strong unit, stiles are continuously-bonded to the skin surface with high-strength adhesive
- Standard bottom door seal on the perimeter and between sections reduces air leakage
- 3″ wide, fully-fitted boxed stiles are adhered with adhesive to prevent rust and leakage
- Surface is ribbed for added strength
Options
- Additional options include insulation and weather stripping that provide a U-value of 0.13 and an R-value of 7.60
Brochure
Highlights
| Material | Non-Insulated Steel |
|
Insulation Value ? R0-R6 = 1 star | ★★ |
