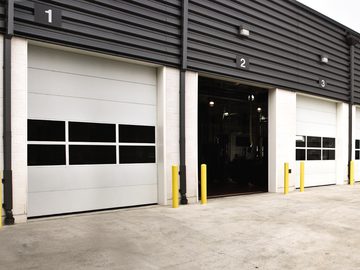

Sectional Steel Door Model 220
The Wayne Dalton Sectional Steel Door Model 220 provides high impact resistance and industrial strength. Featuring a smooth flush exterior, this model is available in a number of sizes and can be customized with a variety of insulation and window options.
Product Specs
Construction
- Bottom sections feature a flexible bulb-shaped vinyl astragal held in place by a continuous roll-formed steel retainer
- Smooth flush exterior with white finish
- 20-gauge steel sections
- Shiplap joint profile
Features
- “C”-shaped 20-gauge center and 16-gauge end stiles are formed of galvanized steel with pre-located extruded holes for rapid hinge attachment
- Provides high-impact resistance and industrial strength
Options
- Optional insulation consists of 1 5/16″ expanded polystyrene which provides an R-value of up to 7.64
- Additional options include top head seal, joint seals, and jamb seals
- Optional 16-gauge center stiles are also available
Brochure
Highlights
Material | Non-Insulated Steel |
Insulation Value ? R0-R6 = 1 star | ★★ |
