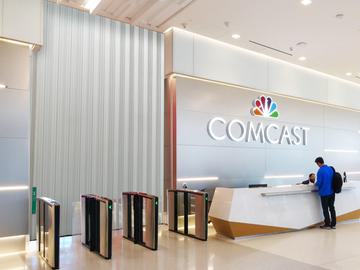

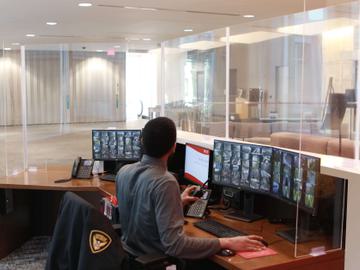

SteelGuard integrates beautifully into any complex building’s security systems while still adhering to building code and egress requirements. SteelGuard doors have the ability to receive a variety of signals from your building’s security system. Advanced security features allow you to control multiple doors from a central location up to a mile away from the openings.


  • Two independent walls of steel panels
  • Up to 15’ x 40’ opening dimension
  • High-speed motor means a speed of up to 22” per second when moving
  • Compliant with all NFPA and IBC code requirements as a means of egress
  • Electromagnetic brakes with 600 lbs resistance to forced entry
  • Antisway measures

Overall Specs

  • Remote Monitoring
  • LCD Door Status Display
  • Optical Obstruction Detection
  • Curved Track


  • Max Height: 15’
  • Max Width: 40’
  • Range of Speed: 16”-22” per second
  • Leadpost: Flat or Narrow
  • Parting: Single Parting
  • Curved: Optional (with Narrow Leadpost)
  • Fire Rating (Minutes): Up to 180
  • Different Pressure Handling (Inches of Water Column): Standard up to 0.10 w.c. Max
  • Key Switch: Required (Provided by Won-Door or others)
  • Remote Monitoring: Optional
  • Security/Access Control: Mechanical Security – Standard (Electromagnetic Brake 600 lbs resistance to forced entry)
  • Electronic Security and Remote Monitoring: Electronic Security – Standard (Remote Monitoring and Operation)
  • Antisway (Under-door Intrusion Prevention): Standard
  • Vision Panel: Optional
  • LCD Door Status Display: Optional
  • Optical Obstruction Detection: Optional (Straight Doors only, Obstruction Test available on Curved Doors)



Material  Steel
Insulation Value

R0-R6 = 1 star
R7-R9 = 2 star
R10-R13 = 3 star
R14 and up = 4 star

R-Value info
