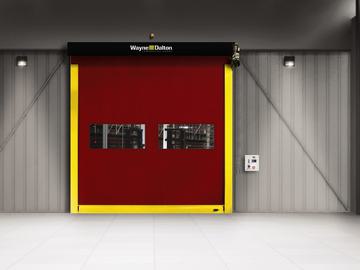

Wayne Dalton Model 881 ADV-X

The Model 881 ADV-X is expertly designed for use in high traffic areas that require a controlled environment, such as distribution and manufacturing companies. It's airtight construction and ability to withstand high pressure environments makes it the perfect solution for containing airborne contaminants, as well as separating high and low pressure areas.

Product Specs

Construction

Door panel constructed from two layers of PVC-coated polyester with one layer of polyester weave
Obstruction detection – two sets of in-plane infrared sensors mounted 18" and 50"-54" from floor
Direct mounted gear drive motor
Standard max height 14'
Standard max width 14'
Built-in door stop device

Features

Airtight design prevents airborne contaminants from entering the controlled and non-controlled environments and reduces air exchange
Strutless design lowers the operational noise of the door for quiet and smooth operation
Capable of withstanding pressure of up to 7.5 PSF or 90 MPH
Patent-pending curtain lock allows door to be easily repaired
Five-year limited warranty

Options

197 optional RAL powder coat colors are available for guides, brackets, struts, and bottom bar
Power availability: 120V AC 1PH, 230V AC 1PH, 230V, AC 3PH, 460V AC 3PH, 575V AC 3PH
Multiple actuation options: push button, motion detector, radio control, key switch, pull switch, loop detector, and treadle switch
