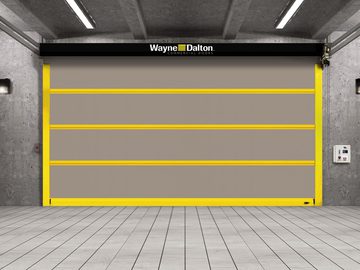

Wayne Dalton Model 882 ADV-X
Optimal for manufacturing, distribution, and warehouse buildings where efficiency is key, the light yet durable design of the Model 882 ADV-X allows for smooth and reliable operation year after year.
Product Specs
Construction
- Door panel constructed from two layers of PVC-coated polyester with one layer of polyester weave
- Obstruction detection – two sets of in-plane infrared sensors mounted 18" and 50"-54" from floor
- Direct mounted gear drive motor
- Standard max height 15'
- Standard max width 16'
- Built-in door stop device
Features
- Strutless design lowers the operational noise of the door for quiet and smooth operation
- Springless design requires minimal interruption for maintenance
- Direct-mounted gear drive minimizes wear and tear
- Variable frequency drive eliminates sudden jolts
- Capable of withstanding pressure of up to 2.5 PSF or 53 MPH
- Five-year limited warranty
Options
- 197 optional RAL powder coat colors are available for guides, brackets, struts, and bottom bar
- Power availability: 120V AC 1PH, 230V AC 1PH, 230V, AC 3PH, 460V AC 3PH, 575V AC 3PH
- Multiple actuation options: push button, motion detector, radio control, key switch, pull switch, loop detector, and treadle switch
Brochure
Highlights
Material | Polyester |
Insulation Value ? R0-R6 = 1 star | ★ |
