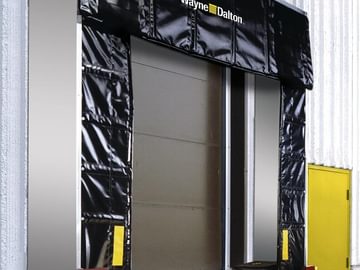

This shelter is designed with flexible vertical panels and a curtain, allowing it to accommodate trailers of varying widths and heights while still providing weather protection. This feature helps to save on heating and cooling costs. Additionally, the shelter provides full access to the back of the trailer, including its full width and height.

Construction Advantages

• Galvanized steel panels and aluminum angle trimming provide a durable, clean finish to side and top panels.
• Overlapping wear pleats in upper corners offer additional protection from trailer impacts and tearing, while the peaked top panel ensures efficient water drainage.
• Foam bead sewn into the leading edge of vertical front and top panels enhances sealing effectiveness.
• Double-layered fabric and high-strength polyester thread, UV treated for enhanced durability, ensure resilience in high-impact areas.
• Fiberglass stays encased in multi-layer pockets provide vertical panel strength, with top stays designed in a "Z" style to maintain curtain straightness.

Fabric Advantages

• Fire-resistant fabric is available in a variety of weights. A premium 40 oz option is six time more resistant to abrasion than the standard fabric option. For demanding applications, optional premium plus fabric offers elevated resistance to UV, fire, abrasion, tearing, rot, stains, salts, and oils, akin to heavy-duty industrial conveyor belts.
• All fabrics treated with UV protection to minimize fading.

Enjoy peace of mind with the manufacturer’s One-Year Limited Warranty.

Brochure

• Fixed Dock Shelter Brochure

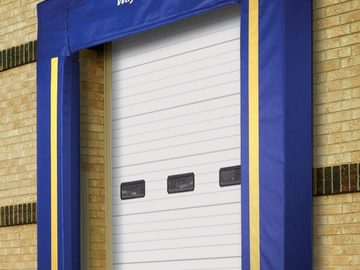

The shelter has Impactable L-shaped columns that tightly wrap around the trailer to prevent the weather from entering. Additionally, it comes with adjustable curtains, making it possible to accommodate trailers of varying heights and widths. The shelter allows full access to the trailer's width and height, providing ample space.

Adjustable Curtain Heights

• Adjustable up to a 52” drop, providing versatility for various trailer heights.
• Features a full-width steel tube to prevent curtain sagging.
• Equipped with a rope and pulley assembly for seamless adjustment, enhancing thermal efficiency. Optional low-temperature PVC strips available for cold weather applications.

High-quality Construction

• Fabric double-stitched with high-strength polyester thread, UV treated for long-term durability.
• Premium-grade foam in columns offers full compression and recovery properties in temperatures as low as -40°F.
• Fire-resistant foam continuously bonded to backing with a non-flammable adhesive for extended lifespan. Plated vent openings promote air circulation and moisture drainage in vertical columns.

Fabric Advantages

• Fire-resistant fabric available in multiple weights, including a premium 40 oz option with six times more abrasion resistance.
• All fabrics treated with UV protection to prevent fading.

Additional Trailer Impact and Abrasion Protection

• Optional column wear pleats provide extra tearing and abrasion protection.
• Heavy-duty 66 oz. wear pleats available for top and bottom corners.

Enjoy peace of mind with our 1-Year Limited Warranty.

Brochure:

• Foam Dock Shelter Brochure
