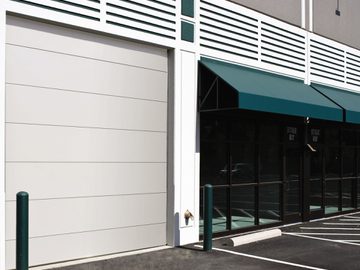

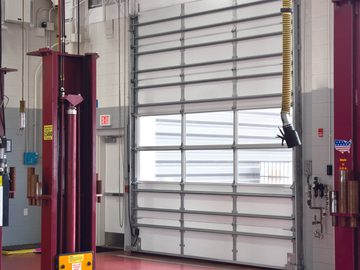

Wayne Dalton Sectional Steel Door Model 216
Made from industrial-grade, 16-gauge hot-dipped galvanized steel, Wayne Dalton’s Model 216 is built tough to endure extreme weather and the challenging conditions of commercial and industrial operations. Customize your sectional steel door with a variety of options and accessories including insulation, impact panels, safety features and more.
Product Specs
Construction
- Made with industrial-grade, 16-gauge hot-dipped galvanized steel with heavy-duty vertical stiles
- Flush profile with shiplap joints
- Heavy duty 16-gauge exterior steel sections
- Has prelocated extruded mounting holes
Features
- Standard R-value of 7.64
- Highest R-value of 10 is available with polyurethane insulation and 20 gauge back sheet
- C-shaped stiles make hinge installation quick and secure
- Continuous roll-formed steel retainer reinforces the lower portion of the door
- 10,0000 cycle standard spring
Options
- Lite options: Vision Lites and Full-View Lites
- Panel options: Colonial, Ranch, Sonoma, Sonoma Ranch, Flush, Stucco-Embossed Pinstripe
- Chain hoist operation
- Motor operation
- High cycle springs (25k, 50k, 100k)
- 3” track
- Solid shafts
- Perimeter weatherseal
- Broken cable devices
- Sensing edges
- Photo eyes
- Special track designs
- Mullion
Brochures
Highlights
Material | Galvanized Steel |
Insulation Value ? R0-R6 = 1 star | ★ |
Uses | Sectional Doors |
