Wayne Dalton’s DaltonDock™ Dock Seals
Reduce heating and cooling expenses with our Fixed Dock Seal, offering a tight compression seal around the trailer top and sides. Additionally, opt for our Adjustable Curtain Seal to cater to diverse trailer heights effectively.

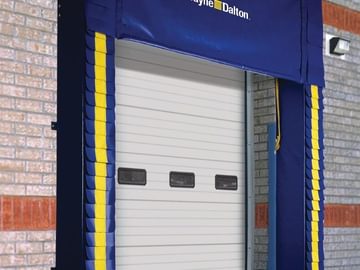

Adjustable Curtain Seal
Wayne Dalton’s seal is designed to provide superior weather protection and can adjust to varying trailer heights. This innovative solution closes gaps and helps protect against harsh weather, saving on heating/cooling costs.
Adjustable Curtain Heights
- Adjustable up to a 60” drop, ensuring versatility for various trailer heights.
- Features a full-width steel tube to prevent curtain sagging.
- Equipped with a rope and pulley assembly for seamless adjustment, enhancing thermal efficiency. Optional low-temperature PVC strips are available for cold applications.
High-quality Construction
- Fabric double-stitched with UV-treated polyester thread for long-term durability.
- Premium-grade foam in columns offers full compression and recovery even in extreme temperatures (-40°F).
- Fire-resistant foam continuously bonded to backing with non-flammable adhesive for extended lifespan. Plated vent openings promote air circulation and moisture drainage in vertical columns.
Fabric Advantages
Fire-resistant fabric available in multiple weights, including a premium 40 oz option with 6 times more abrasion resistance. To prevent damage caused by UV rays, all fabrics are treated to prevent fading.
Additional Trailer Impact and Abrasion Protection
Optional column wear pleats provide extra tearing and abrasion protection. Heavy-duty 66 oz. wear pleats available for top and bottom corners.
4-sided Weather Protection
Bottom seal pad option enhances heating and cooling savings by creating a four-sided seal around the opening (top pad, bottom pad, two side pads).
One-Year Limited Manufacturer Warranty
Brochure:

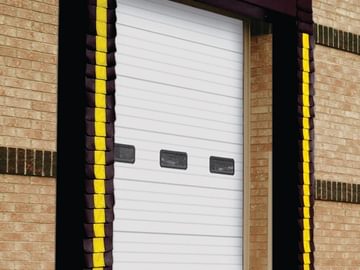

Fixed Dock Seals
This seal helps keep out the weather and can save on heating and cooling costs. Fixed dock seals work by having pads of compressible foam at the top and on the sides of the dock. As the trailer backs into the loading dock, it compresses the foam, creating a seal to keep outside conditions at bay.
High-quality Construction
- Fabric double-stitched with high-strength polyester thread, UV-treated for long-term durability.
- Premium-grade foam in columns and top pad ensures full compression and recovery properties in temperatures as low as -40°F.
- Fire-resistant foam continuously bonded to backing with a non-flammable adhesive for longevity.
- Plated vent openings facilitate moisture drainage and promote air circulation for compression in vertical columns and top pad.
Fabric Advantages
- Fire-resistant fabric available in multiple weights, including premium 40 oz option with 6 times more abrasion resistance.
To prevent fading in the sun, the fabric of our curtain seals is treated with UV protection.
Additional Trailer Impact and Abrasion Protection
- Optional column wear pleats provide extra tearing and abrasion protection.
- Heavy-duty 66 oz. wear pleats available for top and bottom corners.
Additional Trailer Impact and Abrasion Protection
The bottom seal pad option provides sealing on all four sides of the opening, along with side columns and top pad, in docks without a leveller.
One-Year Limited Manufacturer Warranty
Brochure:
