Product Specs


  • Lock uses a standard mortise cylinder and is available with an optional removable core
  • An inside adjusting wheel for tight side-room applications is available in limited sizes
  • Constructed with aluminium, galvanized steel, or stainless steel
  • 2” flat slats


  • Oil-tempered, torsion-type counterbalance springs provide accuracy in balancing the door
  • The “box” type guides are designed to reduce operational noise and conceal fasteners


  • Modes of operation include lift-up, awning crank, and motor
  • Powder coating is available in over 180 colors

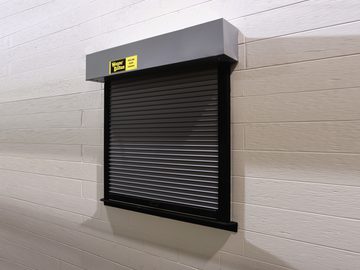

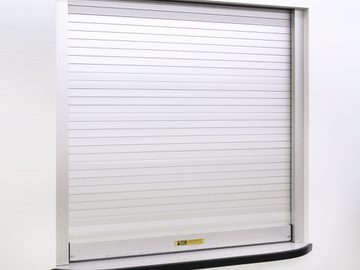

  • Slats on the rolling counter shutter are available in galvanized steel, stainless steel, or aluminum
  • Slide locks
  • Cylinder locks
  • Center locking
  • Counter cutouts
  • Mullion systems
  • Sensing edges
  • Fascias
  • Integral frame units



Material  Aluminum
Insulation Value

R0-R6 = 1 star
R7-R9 = 2 star
R10-R13 = 3 star
R14 and up = 4 star

R-Value info
