Thanks to exceptional custom engineering and the latest fire and security technology, FireGuard offers a large amount of design flexibility and can be installed in widths as wide as a football field and heights up to 5x a standard swing door and can be installed in both straight and curved configurations. Using FireGuard in the place of fire-rated glass and in conjunction with standard tempered glass or no glass can also dramatically reduce construction costs.

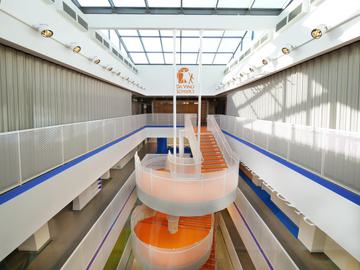

  • Custom-engineered with straight and curved configurations
  • NFPA & IBC compliant and evaluated by ICC-ES (see ESR-1394)
  • Approved for fire, smoke, draft, egress, & access control
  • Only moveable fire wall (tested to ASTM E119 Standard)
  • Fire ratings up to 3 hours (tested to UL10B standard)
  • Meets fire and security needs with one product


  • Key Switch
  • Remote Monitoring
  • Mechanical Access Control
  • Electronic Security
  • Vision Panel
  • LCD Door Status Display
  • Optical Obstruction Detection

Overall Specs

  • Max Height: 30’
  • Max Width: Virtually unlimited
  • Range of Speed: 8-10” per second
  • Lead post: Flat or Narrow
  • Parting: Single or Bi-Parting
  • Curved: Optional (with narrow lead post)
  • Fire Rating (Minutes): Up to 180
  • Different Pressure Handling (Inches of Water Column): Capable up to 0.15 w.c.
  • Key Switch: Optional
  • Remote Monitoring: Optional
  • Security/Access Control: Mechanical Security – Optional
  • Electronic Security and Remote Monitoring: Electronic Security – Optional (Requires Mechanical Security)
  • Antisway (Under-door Intrusion Prevention): Optional (With Mechanical Security and Differential
  • Air Pressure spec)
  • Vision Panel: Optional
  • LCD Door Status Display: Optional
  • Optical Obstruction Detection: Optional (Straight Doors only, Obstruction Test available on Curved Doors)



Insulation Value

R0-R6 = 1 star
R7-R9 = 2 star
R10-R13 = 3 star
R14 and up = 4 star

R-Value info

Uses Fire door
