Product Specs


  • Innovative design provides smooth lift-up operation which does not require tools to reset the mechanism
  • Rust-inhibitive primer keeps the door looking pristine
  • Easy to drop-test and reset, no tools required
  • Conforms to NFPA Standard 80

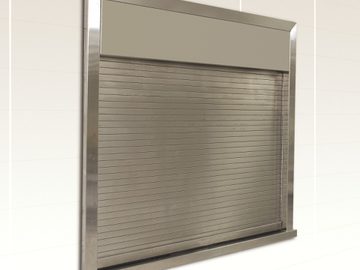

  • Model 540 is made of galvanized steel
  • Model 550 is made of stainless steel
  • Two-year limited warranty


  • May be mounted on steel, masonry, fire-rated wood, or fire-rated drywall
  • Four colour options (white, grey, beige, or brown)
  • 200 power coat options
  • SmokeTite™ UL-Labeled smoke and draft control package
  • Fire-rated countertop
  • Horns and strobes
  • FireLites
  • Smoke detectors
  • WayneGard release system
  • Operator options include: chain hoist, wall crank, motor operation, manual lift



Material  Galvanized Steel
Insulation Value

R0-R6 = 1 star
R7-R9 = 2 star
R10-R13 = 3 star
R14 and up = 4 star

R-Value info

Uses Fire door
