Genie®’s Commercial Operators for Sectional Doors

A commercial sectional door is an essential component of many businesses. Consequently, failing to open or close properly can be frustrating and affect production. When you purchase a commercial door operator from Genie®, you get a system with a reputation for reliable performance.

Genie®’s automatic door operators are manufactured to meet the performance requirements of most commercial and industrial sectional doors. They provide precise control of your door system for years of trouble-free operation. Creative Door Services™ carries several commercial door operators, including the GCL-GT: heavy-duty gear head trolley operator and GCL-T: standard-duty trolley operator. Here’s an overview of these innovative systems.

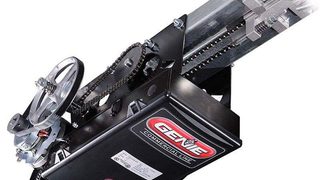

genie commercial line of operators

Standard Features

The GCL-GT heavy-duty gear head trolley operator is designed for standard lift sectional doors that require up to 60-cycles per hour. The GCL-T standard-duty trolley operator is designed for applications that require up to 30-cycles per hour.

Both commercial operators have advanced technology and robust mechanical designs that set a new standard for productivity. They’re UL325-2010 approved and come equipped with the following standard features:

  • EZ Limit® electro-mechanical technology sets limits that stay synchronized even during a power outage
  • MultiVolt® voltage technology with the ability to pick the right voltage for the job site
  • A max-run timer that automatically adjusts to the door’s up and down runtime
  • A convenient 16-character LCD display with an intuitive setup menu that provides status and troubleshooting assistance
  • An advanced radio receiver that limits interface and allows you to individually add and delete up to 50 Intellicode® transmitters directly from the display
  • A two-year, 20,000-cycle warranty
  • A drawbar disconnect via pull cord for manual operation

The GLC-T has a TensiBelt® auto tensioning poly-V J-belt primary drive, while the GLC-GT has a heavy-duty worm gear running in an oil bath. Both have a chain and sprocket reduction secondary drive.

Furthermore, both operators are pre-wired to accept monitored entrapment devices, such as photo eyes, single or three-button control stations, and external interlock switches. The GCL-GT and GCL-T both have an adjustable clutch to help protect against door and operator damage, precision radial ball bearings throughout the operator powertrain and a two-inch heavy-gauge rail system with a roll-formed angle and nylon chain guides.

Genie® has a broad line of electric door operators suitable for new constructions, retrofit applications, and special operations.

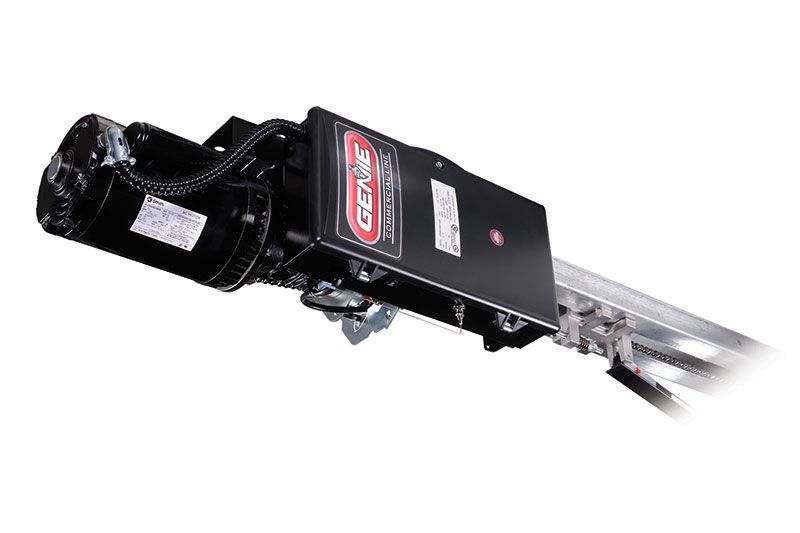

genie commercial operator for sectional doors MODEL GCL GT

Additional Options

The GCL-GT and GCL-T can also be equipped with the following options:

  • Timer to close module. Timed close set via the LCD display from two seconds up to five minutes. Includes pre-close warning contacts, timer hold input, auxiliary open input, normally closed safety input, and monitored edge input.

  • Auxiliary output module. Provides relay contacts at the open, close, and mid-stop limits. Contacts for five-minute lamp, and ADA contacts set via LCD display to warn during opening, closing, or both.

  • Intellicode® transmitters. Available in single- up to four-button or open/close/stop models.

  • Environmental modifications. TENV and TEFC motors and/or NEMA 4 and NEMA 4X are available to be ordered from the factory. These enclosures protect against water spray and corrosion.

Reach out to a member of the Creative Door ServicesTM team to find out how you can outfit your garage door with Genie® products.

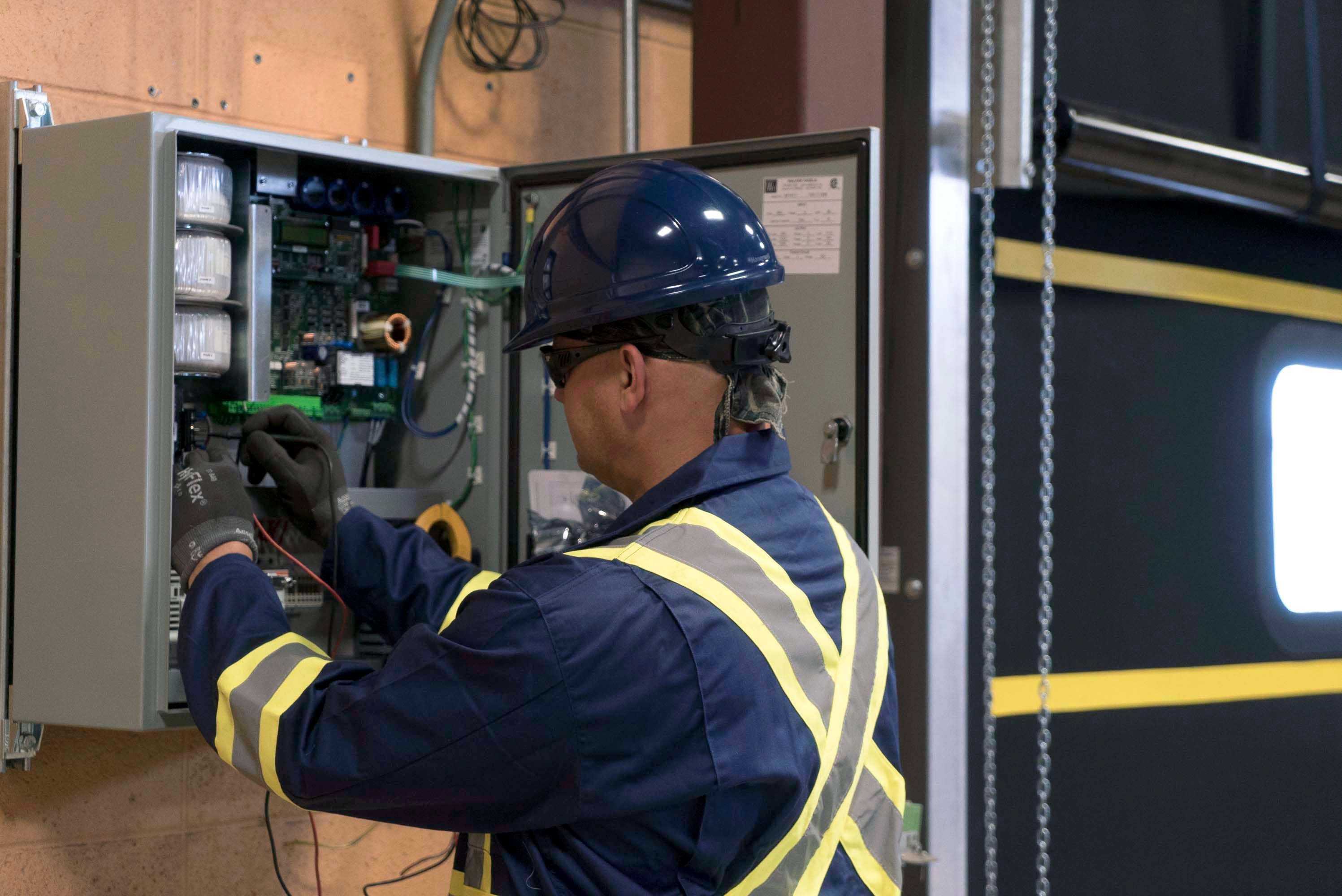

CREATIVE DOOR Commercial technician servicing sectional door in large warehouse

Save Time and Improve Your Bottom Line with Preventative Maintenance

Do you want to ensure your sectional door works properly for years to come? The team at Creative Door ServicesTM can help. We offer a planned maintenance program to increase the safety and security of your business. One of our trained technicians will regularly visit your facility to thoroughly test every component of your door to ensure its continued reliable performance.

We ensure our installers and service professionals participate in ongoing training and certification programs, including those provided by the Door Dealer Education and Accreditation (IDEA) organization and the Installer Certification Program of the Canadian Door Institute (CDI). Every member of our team also has first aid, aerial lift platform, and fall protection certification.

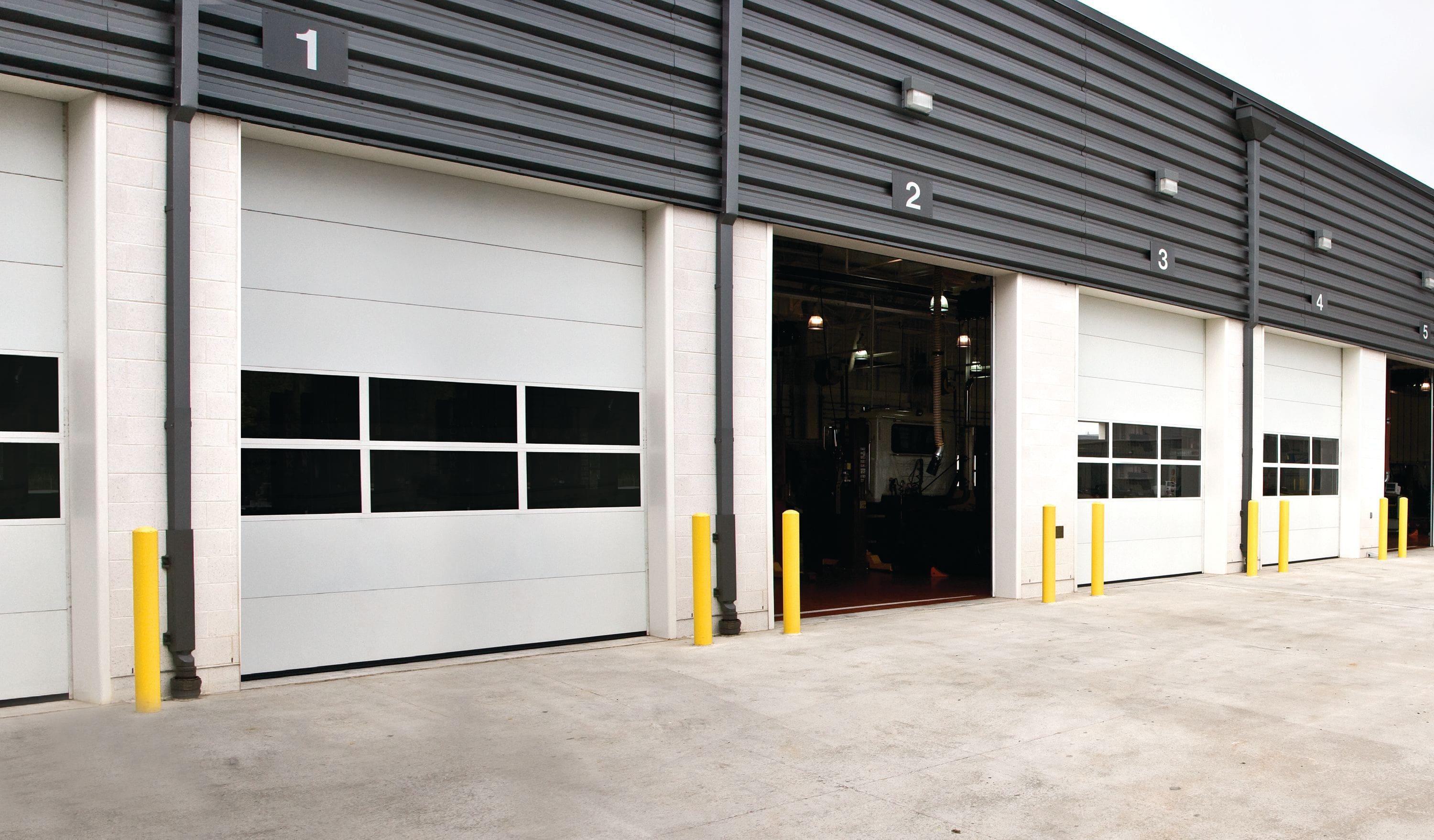

a row a white sectional overhead doors with black roof and yellow bollards

High-Quality Commercial Operators for Sectional Doors

If you need your sectional door repaired or maintained, turn to the knowledgeable team at Creative Door Services™. We carry a variety of industry-leading commercial door products and replacement parts and accessories from leading brands like Genie®.

To learn more about our products and services or get a free quote, contact us today. We have eight locations from which we’re happy to serve you. You can find us in Kelowna, British Columbia; Vancouver, British Columbia; Calgary, Alberta; Edmonton, Alberta; Fort McMurray, Alberta; Regina, Saskatchewan; Saskatoon, Saskatchewan; and Winnipeg, Manitoba.
