Small Space. Big Possibility.

Low-headroom garages can be tricky, but they’re nowhere near a dealbreaker. With the right setup, even a few inches of clearance can deliver uninterrupted, reliable performance. We lean on decades of experience, an extensive catalogue and trusted brands we know remarkably well to engineer compact, efficient systems that make small spaces work harder.

Choosing the right sectional door is the foundation of a successful low-headroom setup. Models like the Wayne Dalton Classic Steel Garage Door 9100–9605 offer the strength, balance, and seamless sectional movement that minimal clearance demands. When paired with a low‑clearance track system or compact spring configuration, these doors perform exceptionally well with very little overhead room. It’s a perfect demonstration of how our team matches industry-leading products with practical engineering to make every inch count.

Practical Low‑Headroom Options for Your Home

Once the right sectional door is chosen, the next step is selecting the configuration that unlocks the most space. From modified track systems to compact spring layouts and advanced wall‑mount openers, these are the solutions our technicians rely on to turn tight spaces into high-performing ones.

Here are the core solutions homeowners can consider when space above the opening is restricted. Each option is designed to maximize clearance while keeping your garage door operating effortlessly, safely, and reliably.

1. Double-track System

A double-track system is a smart configuration built for performance in tight spaces because it fundamentally changes the geometry of how a garage door travels.

The system uses two horizontal tracks, one dedicated to the top panel and another for the remaining sections. This allows the top panel to curve inward sooner, reducing the vertical space required during the lift.

Why It’s So Effective

• It reduces the arc the door needs to travel. The top panel can pivot inward sooner, meaning the door doesn’t need to rise as high before shifting horizontally.
• It minimizes vertical clearance requirements. Homeowners often have as little as 4–6 inches of headroom; the double-track design is engineered specifically for that.
• It reduces the strain on the door sections and hardware. Since the travel path is more controlled, the system avoids forcing the door into angles it wasn’t built for.

This configuration pairs exceptionally well with Wayne Dalton sectional doors, which have engineered hinges and optimized panel geometry designed for efficient, low‑clearance performance.

2. Low‑clearance/Rear-mounted Torsion Spring System

A low‑clearance rear‑mounted torsion spring system opens up space above the door because it relocates the heaviest lifting component, the spring assembly, away from the header, instantly freeing valuable headroom where it’s needed most.

By shifting the spring shaft to the back of the garage, the system reduces overhead interference and creates a clearer path for the door’s travel. This gives the rest of the system room to operate without the obstruction of a front‑mounted torsion tube.

Why It’s So Effective

• Opens the header area. With no torsion assembly above the opening, low-headroom tracks have space to sit higher and operate more efficiently.
• Improves lift performance in compact spaces. The spring applies torque from the rear, enabling smoother, more controlled lifting when ceiling height is limited.
• Reduces visual clutter and hardware density at the opening. The front of the garage has a cleaner appearance with less equipment competing for space.
• Avoids forcing the door into steep, inefficient travel angles. By freeing room above the opening, the system prevents awkward lift geometry that strains hardware.

This rear‑mounted configuration pairs nicely with Wayne Dalton garage doors thanks to their engineered hinges and balanced panel construction, which help the door perform reliably even when headroom is minimal. This option solves clearance challenges by redirecting the track path around obstructions while maintaining the structural integrity needed for long-term, reliable performance.

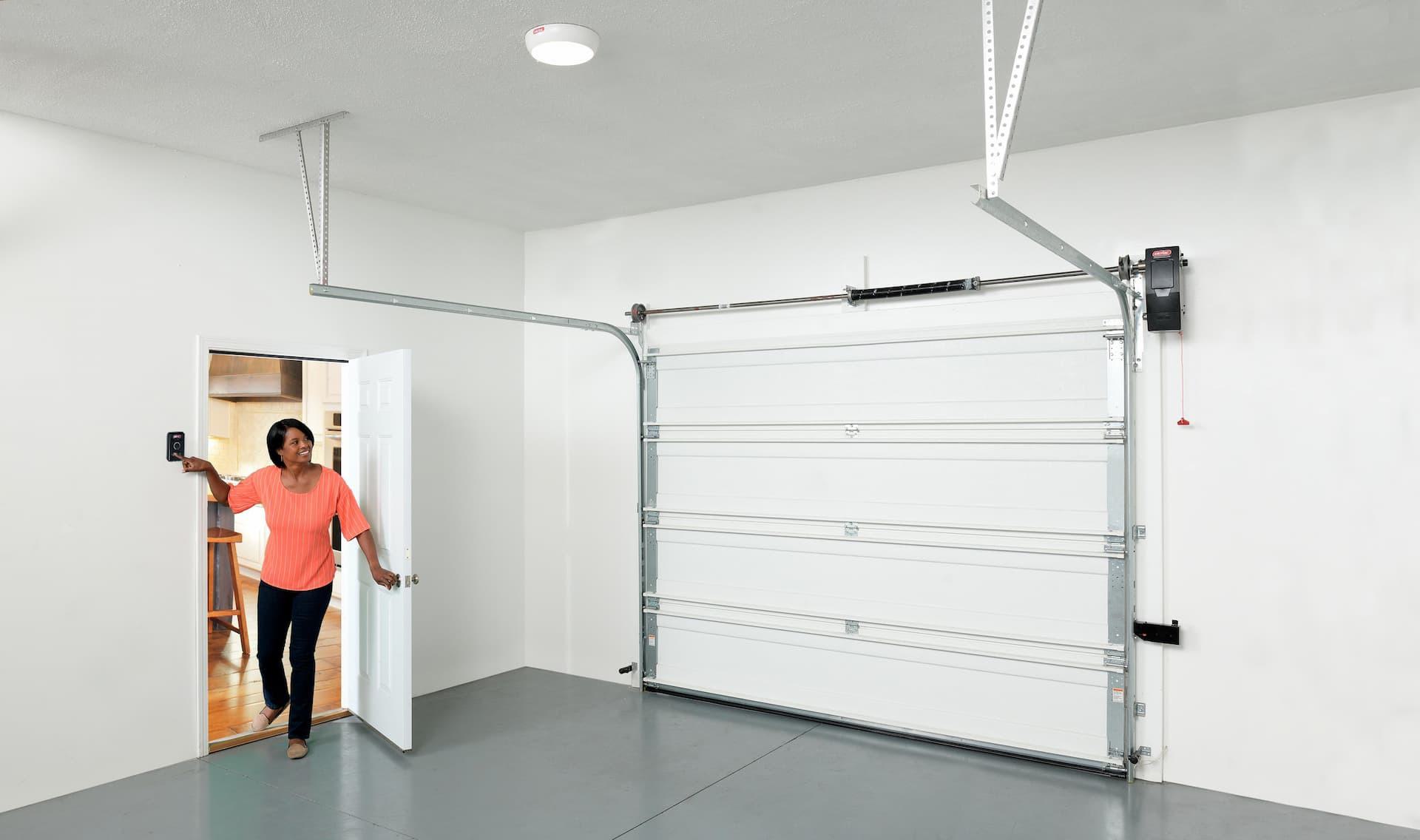

3. Jackshaft/Wall‑Mount Openers: Eliminate the Overhead Rail

A jackshaft or wall‑mount opener is one of the most effective solutions for restricted headroom because it removes the need for an overhead rail entirely, freeing up the ceiling and giving the door a clean, unobstructed path to lift. By shifting the opener beside the door instead of above it, homeowners gain back valuable space that traditional systems simply can’t accommodate.

A wall‑mount opener attaches directly to the torsion shaft mounted beside the door. Instead of pulling the door along a rail, it rotates the shaft to lift and lower the door. This eliminates the long centre rail that normally hangs from the ceiling, which is often the biggest obstacle in a low‑clearance garage.

Why It’s So Effective

• It removes the entire overhead rail assembly, making it ideal for garages with obstacles like beams, storage, ductwork and low ceilings.
• It frees up ceiling space for lighting, storage, or suspended equipment.
• It reduces noise and vibration since it mounts to the wall instead of overhead joists.
• It is engineered to deliver consistent operation in low‑clearance environments, outperforming standard openers that require wider overhead spacing.
• It pairs exceptionally well with low‑clearance track systems because its compact, balanced design supports a more efficient, space-saving setup.

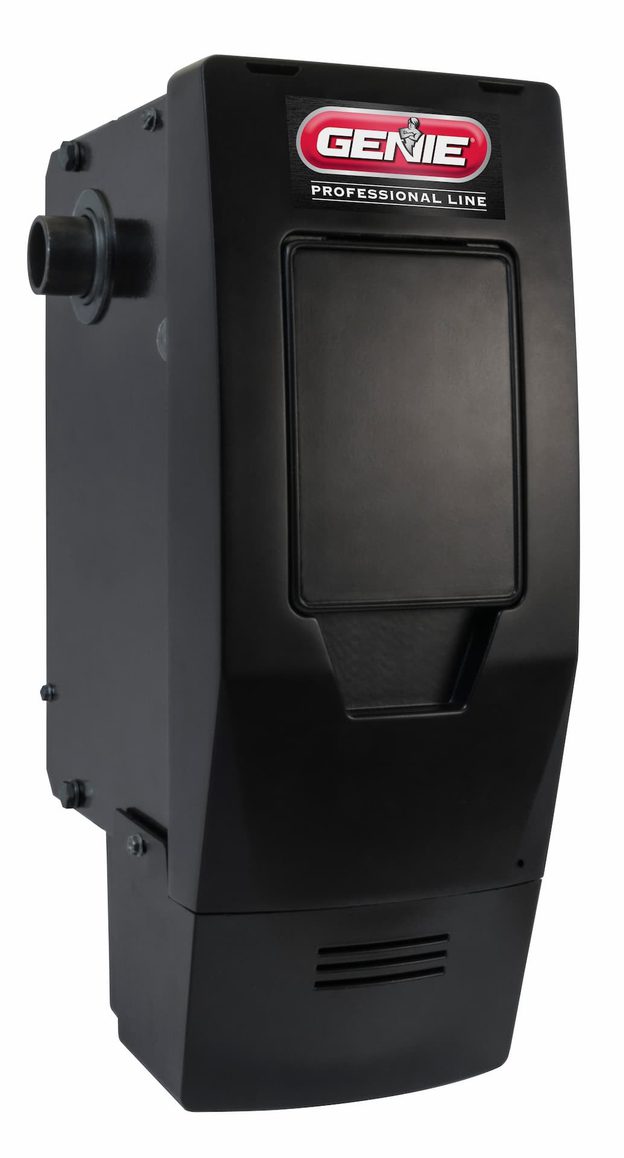

Creative Door Services carries several high-performing Genie wall‑mount options ideal for restricted headroom, including the Genie Wall Mount 6070, Genie Wall Mount 6170 and the Genie 6170H‑B, all engineered for quiet, strategic space-saving performance that fits beautifully into compact garage layouts.

Additional Low-Headroom Solutions

Creative Door Services technicians often combine multiple strategies to solve complex clearance challenges. Here are additional options that offer strong performance in restricted spaces.

1. Low-profile Tracks and Compact Hardware

Low-profile horizontal tracks and compact hardware work together to create a smart solution for garages with confined mechanical layouts. The tracks sit closer to the ceiling to reduce horizontal clearance, maximize usable height, and allow the door to open fully even when bulkheads, ducting or overhead storage are in the way.

Paired with specialized low-profile brackets, operator plates, and struts, this setup minimizes hardware depth and offers stable, trustworthy operation without the typical space requirements.

2. Offset or Side-mounted Tracks

Offset or side-mounted tracks are used when ceiling obstructions prevent standard track placement, allowing the system to adapt to uneven construction and maintain proper door travel. By shifting the track position to avoid beams, joists, or other overhead elements, this configuration preserves consistent, smooth movement without compromising structural alignment.

Creative Door Services offers a practical workaround that keeps the installation clean, functional, and dependable even in irregular spaces.

3. Sectional Door Engineering

Sectional door engineering plays a major role in how a system performs, especially in restricted layouts, because the quality of the hinges, breakpoints, and panel construction determines how steadily the door can articulate when space is limited.

Wayne Dalton’s precision-engineered hinges, even breakpoints, and lightweight yet durable panels create a balanced, predictable movement that works seamlessly with advanced low‑clearance hardware. Together, these details enhance performance in space-limited environments, offering a dependable, high-quality solution that reflects Creative Door Services’ commitment to smart, innovative engineering.

Turning Limited Space into Confident Performance

Low-headroom garages aren’t a problem when you have the right tools, the right team, and the right brands behind you. From double-track systems and rear-mounted torsion springs to smart wall‑mount openers from Genie, we engineer solutions that make narrow spaces perform beautifully. Our access to low-profile hardware, modified lift configurations and precision-designed Wayne Dalton sectional doors gives us the freedom to solve challenges others walk away from. With Creative Door Services, even the smallest space becomes a space to innovate.

We choose to work with trusted industry leaders like Wayne Dalton so you can count on top-quality products every time. Contact us at one of our locations in Kelowna, British Columbia; Vancouver, British Columbia; Calgary, Alberta; Edmonton, Alberta; Fort McMurray, Alberta; Regina, Saskatchewan; Saskatoon, Saskatchewan; and Winnipeg, Manitoba for your convenience. You can call your nearest location today to request a quote.
